How to Replace the Seat on a John Deere Gator XUV (Part #GWG311583)

If the seat on your John Deere Gator XUV is cracked, torn, or worn out, replacing it is a quick and inexpensive repair that can make your utility vehicle much more comfortable to operate. In this step-by-step guide, we’ll show you how to replace your old seat using aftermarket replacement seat GWG311583.

For this installation, Melchert Equipment is replacing an old worn-out seat with a new aftermarket replacement seat purchased from Greater Ag Parts. This repair requires only a few basic tools and can typically be completed in less than 20 minutes.

Replacement Seat Information

• Replacement Seat Part Number: GWG311583
• Installation Time: Approximately 20 minutes
• Difficulty: Easy

Tools & Hardware Needed

Before you begin, gather the following tools and hardware:

• 13 mm wrench
• 1/2-inch wrench
• Four (4) new 5/16″ x 3/4″ bolts

Note: The new aftermarket seat uses different mounting hardware than the original John Deere seat. The original bolts cannot be reused and should be replaced with four new 5/16″ x 3/4″ bolts.

Step 1: Remove the Original Seat

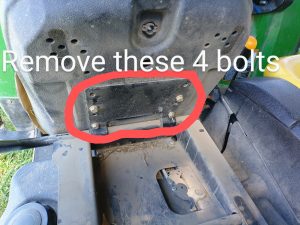

Locate the four mounting bolts underneath the seat bracket.

Using a 13 mm wrench, remove all four bolts securing the old seat to the bracket. Once the bolts have been removed, lift the worn seat off the mounting bracket and inspect the bracket for any damage, rust, or debris before installing the new seat.

Step 2: Position the New Seat

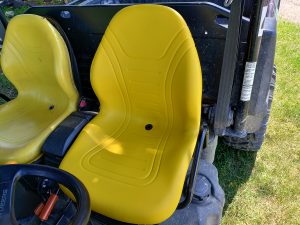

Place the new aftermarket seat (Part #GWG311583) onto the existing mounting bracket.

Align the mounting holes in the seat with the holes in the bracket to ensure proper fitment before installing the new hardware.

Step 3: Install the New Hardware

Insert the four new 5/16″ x 3/4″ bolts through the seat and mounting bracket.

Using a 1/2-inch wrench, tighten each bolt evenly. Alternate between bolts to ensure the seat seats evenly against the bracket.

Do not overtighten the hardware. Tighten each bolt securely so the seat is firmly mounted without damaging the seat base.

Step 4: Inspect Your Installation

After tightening all four bolts:

• Verify the seat is securely fastened.
• Check that there is no movement or rocking.
• Sit in the seat to confirm proper positioning and comfort.
• Recheck the bolt tightness after your first few hours of operation.

Project Complete

That’s it! Replacing the seat on your John Deere Gator XUV is one of the easiest maintenance projects you can complete and usually takes less than 20 minutes from start to finish.

A new seat not only improves comfort but also gives your Gator a cleaner, more professional appearance while helping make long days on the farm, ranch, or job site more enjoyable.

If you’re looking for a quality aftermarket replacement seat for your John Deere Gator XUV, Part #GWG311583 is a direct replacement designed to get your machine back to work quickly.

Frequently Asked Questions

How long does it take to replace a John Deere Gator seat?

Most owners can replace the seat in approximately 20 minutes using basic hand tools.

Can I reuse the original mounting bolts?

No. This aftermarket replacement seat requires four new 5/16″ x 3/4″ bolts, as the factory bolts are a different size.

What tools are required?

Only two common hand tools are needed:

• 13 mm wrench
• 1/2-inch wrench

Is this an easy DIY repair?

Yes. Replacing the seat is considered an easy repair and is suitable for most owners with basic mechanical experience.
