Cummins ISX Teardown: How a Loose Clamp Took Down a Case IH Quadtrac

At Greater Ag Parts, we see a lot of engines come through the door, and many of them fail for reasons that start out pretty small. This one is a good example.

Recently, Melchert Equipment tore down a Cummins ISX engine that came out of a Case IH Quadtrac, and the damage all traced back to something simple—a loose intake clamp.

A Small Problem That Turned Into a Big One

That loose clamp let dirt get past the air filter and straight into the engine. And in ag applications, especially with tracked tractors working in dusty conditions, that’s about the worst thing that can happen.

Once dirt gets inside a diesel engine, it doesn’t take long to start causing damage. It works like sandpaper on internal parts, wearing things down fast.

The First Red Flag: Excessive Blow-By

Before the engine was pulled apart, it was already showing excessive blow-by. That’s usually a sign that the engine isn’t sealing like it should anymore. Operators might notice things like:

• Increased crankcase pressure

• Oil mist coming out of the breather

• Loss of power

• Higher oil consumption

At that point, it was clear the engine needed to come apart to see what was really going on inside.

What Turned Up During the Teardown

Once Melchert Equipment got the Cummins ISX torn down, the cause was obvious. Dirt ingestion had done its job.

They found:

• Scored cylinder liners from abrasive contamination

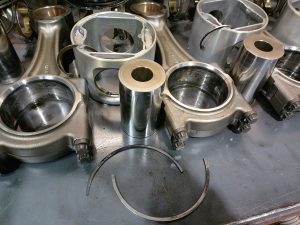

• Broken piston rings that couldn’t seal properly

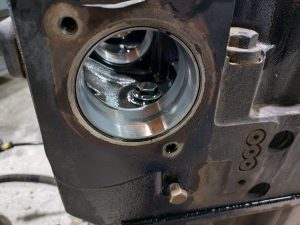

• Excessive wear on the pistons, far beyond normal service wear

Even though the Cummins ISX is a tough engine, it’s not built to handle dirt inside the combustion chamber. Once contamination starts, wear spreads throughout the engine quickly.

Melchert Equipment: Home | Melchert Equipment | Morristown, MN | We buy and sell equipment, offer consignment, and more!

Why Intake System Checks Matter

This Case IH Quadtrac teardown is a solid reminder of how important basic intake system maintenance really is. A quick check of clamps and boots can save a lot of downtime and a very expensive repair bill.

A few things worth keeping an eye on:

• Make sure all intake clamps are tight

• Look for dust trails around intake connections

• Replace cracked or worn boots before they fail

Catching something small early can be the difference between tightening a clamp and rebuilding an engine.

Helping Keep Ag Equipment Running

At Greater Ag Parts, we use teardowns like this to better support our customers with quality used, rebuilt, and reman Cummins ISX parts. Working with shops like Melchert Equipment gives us real-world insight into how these engines fail and how operators can avoid the same problems.

If you’re dealing with blow-by, engine damage, or need parts for a Cummins in a Case IH Quadtrac or other ag equipment, give us a call. We’ve seen it, torn it down, and we’re here to help.
