Cummins 8.3 Valve failure
Diesel Engine Valve Failure: How One Broken Valve Caused a Major Agricultural Engine Rebuild
Agricultural equipment engines operate under extreme conditions, and even a single internal component failure can lead to extensive damage. Recently, Greater Ag Parts supplied replacement components for a diesel engine rebuild after a catastrophic valve stem failure occurred in an engine that had only logged 300 hours since its last rebuild.
The repair work was performed by Melchert Equipment, whose technicians diagnosed a chain reaction of internal engine damage that began with a single failed exhaust valve. What followed was a perfect example of how quickly a diesel engine timing failure can cause widespread internal damage.
This real-world case highlights the importance of quality agricultural engine parts, proper engine timing, and experienced equipment technicians.
The Initial Failure: Broken Valve Stem in a Diesel Engine
The problem began when a valve stem failed on one of the exhaust valves inside the cylinder head.
When the valve stem broke, the valve dropped into the combustion chamber. As the engine continued rotating, the piston forced the broken valve into the cylinder head, creating immediate internal damage.
Valve failures are rare but can be devastating in high-compression diesel engines commonly used in tractors and agricultural equipment.
Once the piston contacted the valve, the engine experienced severe mechanical stress that triggered further failures.
How a Single Valve Failure Caused Major Engine Damage
After the valve stem broke, a series of mechanical failures occurred inside the engine:
-
The piston jammed the broken valve into the cylinder head.
-
The impact sheared the crankshaft alignment dowel.
-
With the dowel sheared, the crankshaft timing gear moved out of position.
-
The engine immediately fell out of time.
-
As the crankshaft continued to rotate, the remaining five exhaust valves struck the pistons.
At this point, the engine required a complete teardown and inspection to determine the full extent of the damage.
This type of failure is known as a valve-to-piston collision, which can occur when engine timing components lose alignment.
Why Engine Timing Is Critical in Agricultural Diesel Engines
Modern diesel engines used in agricultural equipment rely on precise timing between the crankshaft and camshaft.
Every rotation must be synchronized so that:
-
Pistons move up and down at the correct time
-
Intake valves open to allow airflow
-
Exhaust valves release combustion gases
-
Valves close before pistons reach top dead center
The crankshaft alignment dowel helps keep the crankshaft timing gear locked in the correct position. When the dowel sheared during the valve impact, the gear shifted just enough to throw the engine completely out of time.
Once that happened, the remaining exhaust valves collided with the pistons, multiplying the damage across multiple cylinders.
Diagnosing the Root Cause of the Engine Failure
When technicians at Melchert Equipment disassembled the engine, the root cause became clear: the initial valve stem failure triggered the entire chain reaction.
During the inspection process, technicians evaluated several components including:
-
Cylinder head
-
Pistons
-
Exhaust valves
-
Timing gears
-
Crankshaft alignment components
Situations like this demonstrate why thorough diagnostics are critical during any agricultural engine rebuild.

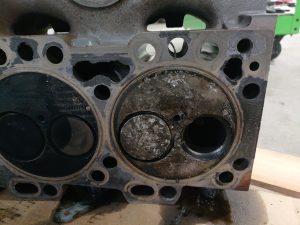

Cylinder head damage caused by a dropped exhaust valve. When the valve stem failed, the valve fell into the combustion chamber and was struck by the piston, leaving heavy impact marks and debris throughout the chamber.
Supplying Quality Parts for the Engine Rebuild
Once the damage was identified, the next step was sourcing the correct replacement components.
Greater Ag Parts supplied the necessary engine components to help complete the rebuild and restore the engine to working condition.
High-quality replacement parts are essential in diesel engine repair because agricultural equipment operates under heavy loads, high temperatures, and long working hours.
Using dependable parts ensures the engine can return to service with reliable performance.
The Importance of Experienced Agricultural Equipment Technicians
Major engine failures like this require experienced technicians who understand both diesel engine mechanics and agricultural equipment systems.
The team at Melchert Equipment carefully disassembled the engine, diagnosed the cause of the failure, and began the rebuild process using reliable components from Greater Ag Parts.
This collaboration between trusted parts suppliers and skilled repair technicians helps minimize downtime for farmers and equipment operators.
Keeping Agricultural Equipment Running Strong
When agricultural engines fail, downtime can quickly impact productivity in the field. Having access to quality engine parts and experienced repair technicians is critical to getting equipment back to work.
By supplying dependable replacement components, Greater Ag Parts helps support agricultural equipment repairs across the region, while skilled technicians like those at Melchert Equipment ensure the job is done right.
Together, the goal is simple: keep farm equipment running reliably when it matters most.
Frequently Asked Questions About Diesel Engine Valve Failures
What causes a valve stem to fail in a diesel engine?
Valve stems can fail due to metal fatigue, excessive heat, lubrication issues, or manufacturing defects. When a valve stem breaks, the valve can drop into the cylinder and cause severe internal engine damage.
What happens when engine timing is thrown off?
When crankshaft and camshaft timing fall out of sync, pistons and valves may collide. This can bend valves, damage pistons, and require a complete engine rebuild.
Can a diesel engine be repaired after valve-to-piston contact?
Yes, but it usually requires a full engine teardown and inspection. Damaged components such as valves, pistons, cylinder heads, and timing components must often be replaced.
Why are quality engine parts important for agricultural equipment?
Agricultural engines operate under heavy loads for long periods of time. Using high-quality replacement parts helps ensure durability, reliability, and long engine life.
