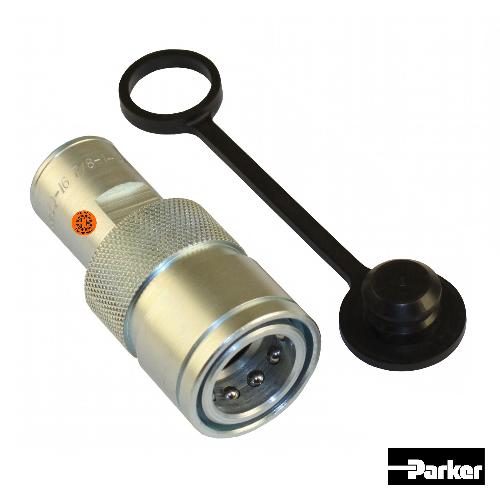

Parker Hydraulic Breakaway Coupler, Female, Genuine OEM Style
Parker Hydraulic Breakaway Coupler, Female, Genuine OEM Style
Part #: HA177478
Pioneer's connect under pressure agricultural quick couplers and nipples are the farmers choice where fluid lines require fast and easy connection and disconnection. Comes with a 1/2" molded rubber coupler protector.
- Connect under pressure on the coupler side, residual pressure on the nipple side
- One handed push to connect operation
- Push-pull breakaway sleeve allows coupler to disconnect in case of implement breakaway
- Clamp/bracket/bulkhead mountable
- Poppet or ball valve option
- Critical parts are hardened for durability
- Globally connects with Pioneer universal male tips complying to ISO 5675
It is recommended to purchase in quantities of two (pressure & return).
$102.48 $97.36
Product Details
Cross-Reference Numbers
- A147888
- A177478
- K201770
- A141456
- A147741
Product Specifications
| Body Size | 1/2" Series |
|---|---|
| ISO | 5675 |
| New/Reman | New |
| Quality | Genuine |
| Sold As | Each |
| Style | Push-Pull |
| Thread Size | Female; 7/8" - 14 ORB |
| Warranty | 1 Year |
