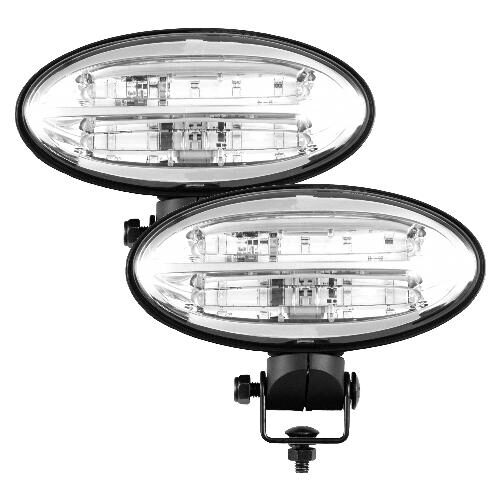

LED Flood Beam Work Light - Pedestal Mount, 3600 Lumens - (Pkg. of 2)
LED Flood Beam Work Light - Pedestal Mount, 3600 Lumens - (Pkg. of 2)

LED Flood Beam Work Light – Pedestal Mount, 3600 Lumens – (Pkg. of 2)

Part #: HR573609 SET

This Hy-Capacity flood beam work light set features an adjustable pedestal mount for flexible installation across many agricultural equipment applications. The light pivots forward, backward, or sideways for optimal positioning on cab fronts, cab rears, fenders, or mid-body locations.

Key Features
• Durable polycarbonate lens with aluminum housing

• Waterproof and dustproof – IP67 rated

• Energy-efficient LEDs last up to 5× longer than traditional halogen work lights

• Backed by a 1-year Hy-Capacity warranty
• Recommended for off-road applications

Tight on clearance space, encountering a clearance problem? The plastic mounting collars can be adjusted to gain more space.

Wiring on the new light not matching your machine? A new electrical connector may need to be installed.

$236.67 $196.44

Product Details

Cross-Reference Numbers

  • 86044306
  • RE269640
  • 86056895
  • HR573609
  • HR573609ST
  • RE269638
  • RE269641
  • RE573609
  • HF86044306
  • TL8060
  • RE269636

Product Specifications

Amps (@12V)3.75
Beam PatternFlood
Dimensions6.5" x 3.25"
InstallationPlug & Play Connection
Lens MaterialPolycarbonate
Light Output (Lumens)3600
Lumen Range3000 - 3999
ShapeOval
Sold AsPkg. of 2
Volts9-32V
Warranty1 Year
Waterproof RatingIP67
Watts45

Fits Models

John Deere

Baler
L331L341
Mower
7400A7500A7700A8000A8800A
Sprayer
R4023R4030R4038R4044R4045R4060
Tractor
5060E5065E5067E5075E5075EN5075M - Final Tier 45082E5083E5085E - Final Tier 45085M - Tier 3, Final Tier 45090E5090EH - High Clearance5090EL5090M - Final Tier 45090R5093E5095M5100E - Final Tier 45100M - Final Tier 45100MH5100R5101E5105M5105MH5115M - Final Tier 45115R5120M5125M5130M6100E6105E - Tier 06105R - Interim Tier 46110E6110M - Final Tier 4, MY206110R - Final Tier 4, MY 15-6115E6115R - Interim Tier 46120E - Tier 06120M - Tier 3, Final Tier 4, MY20-6120R - Final Tier 4, MY15-6125E6125R - Interim Tier 46130E6130M - Final Tier 4, MY206130R - Final Tier 4, MY15-6140E - Tier 06140M - Final Tier 4, MY206140R - Interim Tier 46145M - Final Tier 4, MY206145R - Final Tier 4, MY15-6150R - Tier 46150RH - Tier 46155M - Final Tier 4, MY206155MH - Final Tier 4, MY206155R - Final Tier 4, MY15-6155RH - Final Tier 4, MY15-6170R - Interim Tier 46175M - Final Tier 4, MY206175R - Final Tier 4, MY15-6190R - Interim Tier 46195M - Final Tier 4, MY206195R - Final Tier 4, MY15-6210M6210R - Interim Tier 46215R - Final Tier 4, MY15-6230R - Final Tier 4, MY18-6250R - Final Tier 4, MY18-6803 - Tier 06R110 - Final Tier 4, Stage 5, MY22-6R120 - Final Tier 4, Stage 5, MY22-6R130 - Final Tier 4, Stage 5, MY22-6R140 - Final Tier 4, Stage 5, MY22-6R145 - Final Tier 4, Stage 5, MY22-6R155 - Final Tier 4, Stage 5, MY22-6R165 - Final Tier 4, Stage 5, MY22-6R175 - Final Tier 4, Stage 5, MY22-6R195 - Final Tier 4, Stage 5, MY22-6R215 - Final Tier 4, Stage 5, MY22-6R230 - Final Tier 4, Stage 5, MY22-6R250 - Final Tier 4, Stage 5, MY227200R7210R - Eff. S/N 0800017215R7230R - Prior to S/N 110100,7250R7260R7270R7280R7290R7310R - Eff. S/N 0800018225R8235R8245R8260R8270R8285R8295R8295RT8310R - Eff. S/N 0160018310RT - Eff. S/N 0900018320R8320RT8335R8335RT8345R8345RT8360R8360RT - Eff. S/N 9025018370R8370RT8400R9360R - Eff. S/N 0001019370R9410R - Eff. S/N 0001019420R9420RX - Prior to S/N 8200009460R - Eff. S/N 0001019460RT - Eff. S/N 0150009470R9470RT9470RX - Prior to S/N 8200009510R9510RT9520R9520RT9520RX - Prior to S/N 8200009560R9560RT9570R9570RT9570RX - Prior to S/N 8200009620R9620RX - Prior to S/N 820000

Versatile

Sprayer
SP235SP275SX240SX280
Tractor
260265270275290295300305310315320335 - Fender340350360 - Fender365 - Fender370375380395400405425430450460500 - Yr. 2012 thru 2017520550570575610620
