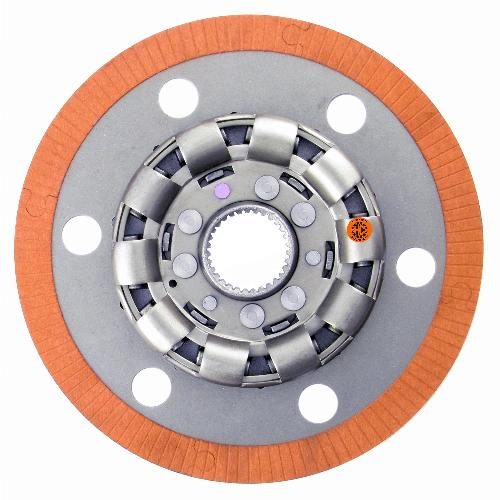

12" Transmission Disc, Bonded Lining, w/ 2-1/16" 31 Spline Hub - New
12″ Transmission Disc, Bonded Lining, w/ 2-1/16″ 31 Spline Hub – New
Part #: A1981312
Powershift. Built w/ new bonded lining.
$250.59 $238.06
Product Details
Cross-Reference Numbers
- 1981314C1R
- 1981314C1
- 1981312C1
- A155490
- A157381
- A154349
- A158037
Product Specifications
| Disc Center | Spring |
|---|---|
| Hub Size | 2-1/16" |
| New/Reman | New |
| Size | 12" |
| Sold As | Each |
| Spline Count | 31 |
| Warranty | 1 Year |
Fits Models
Case
Tractor
1070 - Qty. 1 Required, Eff. S/N 87256561270 - Qty. 2 Required, Eff. S/N 8736001, .225" Thickness Pressure Plates Must Be Replaced w/ a New One Measuring .325" See Case Service Bulletin A75-82 Dated 10/7/82 or contact Hy-Capacity Service Dept.1370 - Qty. 2 Required, Eff. Trans. S/N 10057473, .225" Thickness Pressure Plates Must Be Replaced w/ a New One Measuring .325" See Case Service Bulletin A75-82 Dated 10/7/82 or contact Hy-Capacity Service Dept.1570 - Qty. 2 Required, .225" Thickness Pressure Plates Must Be Replaced w/ a New One Measuring .325" See Case Service Bulletin A75-82 Dated 10/7/82 or contact Hy-Capacity Service Dept.1896 - Qty. 2 Required2090 - Qty. 1 Required2094 - Qty. 2 Required2096 - Qty. 2 Required2290 - Qty. 1 Required2294 - Qty. 2 Required2390 - Qty. 2 Required, .225" Thickness Pressure Plates Must Be Replaced w/ a New One Measuring .325" See Case Service Bulletin A75-82 Dated 10/7/82 or contact Hy-Capacity Service Dept.2394 - Qty. 2 Required2470 - Qty. 2 Required, .225" Thickness Pressure Plates Must Be Replaced w/ a New One Measuring .325" See Case Service Bulletin A75-82 Dated 10/7/82 or contact Hy-Capacity Service Dept.2590 - Qty. 2 Required, .225" Thickness Pressure Plates Must Be Replaced w/ a New One Measuring .325" See Case Service Bulletin A75-82 Dated 10/7/82 or contact Hy-Capacity Service Dept.2594 - Qty. 2 Required2670 - Qty. 2 Required, .225" Thickness Pressure Plates Must Be Replaced w/ a New One Measuring .325" See Case Service Bulletin A75-82 Dated 10/7/82 or contact Hy-Capacity Service Dept.3294 - Qty. 2 Required3394 - Qty. 2 Required3594 - Qty. 2 Required4490 - Qty. 2 Required, .225" Thickness Pressure Plates Must Be Replaced w/ a New One Measuring .325" See Case Service Bulletin A75-82 Dated 10/7/82 or contact Hy-Capacity Service Dept.4494 - Qty. 2 Required4690 - Qty. 2 Required, .225" Thickness Pressure Plates Must Be Replaced w/ a New One Measuring .325" See Case Service Bulletin A75-82 Dated 10/7/82 or contact Hy-Capacity Service Dept.4694 - Qty. 2 Required970 - Qty. 1 Required, Eff. S/N 8725656
