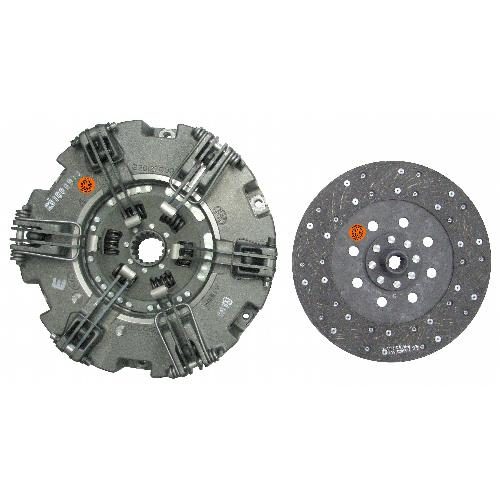

12-1/4" LuK Dual Stage Clutch Unit - New
12-1/4″ LuK Dual Stage Clutch Unit – New
Part #: F5189875NU
This is a Safety PTO Clutch, check that the flywheel disc is free after installation. Learn more, Safety PTO Clutch Service Guide.
Includes: PPA, Captive Transmission Disc, ##F5167937## (Flywheel Side PTO Disc)
$1,113.83 $1,058.14
Product Details
Cross-Reference Numbers
- 5167933
- 5167933R
- 5189875R
- F5189875RU
- 5189875
- 84478095
- 84478095R
- 87716719
- 87716719R
Product Specifications
| Captive Disc Spec | 8 Pad; 1-3/4" 16 Spline Hub; Spring Center |
|---|---|
| Flywheel Disc Spec | Woven; 1" 10 Spline Hub; Solid Center |
| Flywheel Step | 0.018" |
| New/Reman | New |
| PPA Levers | 6 |
| Size | 12-1/4" |
| Sold As | Each |
| Warranty | 1 Year |
Fits Models
Case IH
Tractor
Farmall 105U - Non-Tier 4A, Yr. 01/08 thru 12/14Farmall 85C - w/ Tier 4A - S/n Zxxx5xxxx, Yr. 12/12 thru 12/14Farmall 85UFarmall 95 - w/ Evenly Spaced Levers & Single Lever PTO Clutch, w/ 12-1/4" Woven Flywheel DiscJX1070UJX1080UJX1090UJX70UJX80UJX90UJX95 - w/ Evenly Spaced Levers & Single Lever PTO Clutch, w/ 12-1/4" Woven Flywheel Disc
New Holland
Tractor
4835 - 9/95 through 12/985635 - Eff. 10/9866357635T4.105 - Tier 4AT4.75 - w/ Mechanical PTO Clutch, w/o Cab (Yr. 6/13 - 12/14)T4.85T4.95 - Tier 4AT5040 - Eff. 1/04TD5050 - w/ Evenly Spaced Levers & Single Lever PTO Clutch, w/ 12-1/4" Woven Flywheel DiscTD95D - w/ Evenly Spaced Levers & Single Lever PTO Clutch, w/ 12-1/4" Woven Flywheel DiscTL100 - Eff. 1/04TL100ATL70 - Eff. 1/04TL80 - Eff. 1/04TL80A - Eff. 1/04TL90 - Eff. 1/04TL90A - Eff. 1/04
